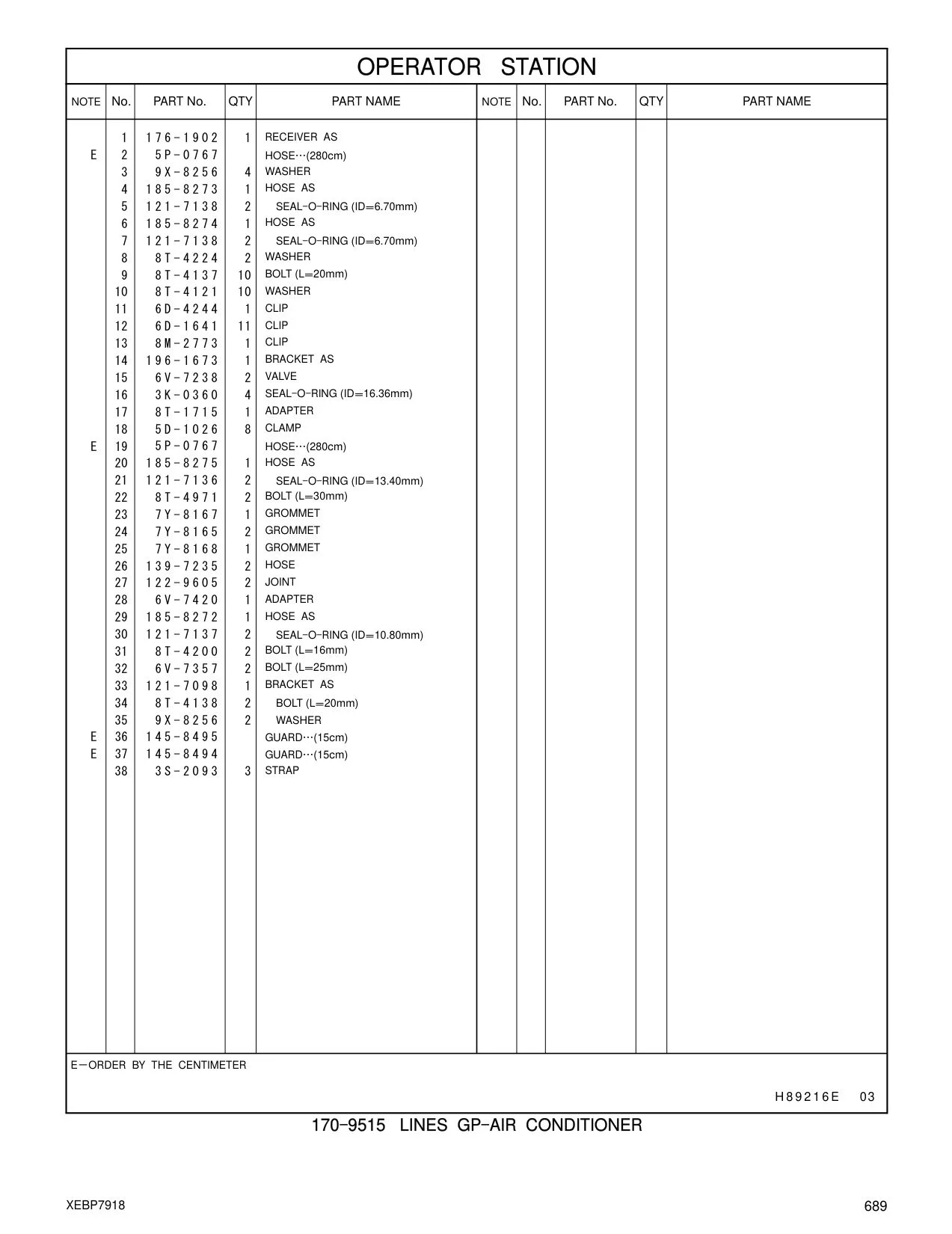

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 176-1902 |
RECEIVER AS
|
1 | 949 |
| 9X-8256 |
WASHER (6.6X12X2-MM THK)
止推垫圈 |
4 | 949 |
| 185-8273 |
HOSE AS
软管组件 |
1 | 949 |
| 121-7138 |
SEAL-O-RING (ID=6.70mm)
O 形密封圈 |
2 | 949 |
| 185-8274 |
HOSE AS
软管组件 |
1 | 949 |
| 8T-4224 |
WASHER
卡箍板 |
2 | 949 |
| 8T-4137 |
BOLT (L=20mm)
螺栓 |
10 | 949 |
| 8T-4121 |
WASHER
卡箍板 |
10 | 949 |
| 6D-4244 |
CLIP
卡箍 |
1 | 949 |
| 6D-1641 |
CLIP
卡箍 |
11 | 949 |
| 8M-2773 |
CLIP
卡箍 |
1 | 949 |
| 196-1673 |
BRACKET AS
支架组件 |
1 | 949 |
| 6V-7238 |
VALVE
切断阀 |
2 | 949 |
| 3K-0360 |
SEAL-O-RING (ID=16.36mm)
O 形密封圈 |
4 | 949 |
| 8T-1715 |
ADAPTER
接头 |
1 | 949 |
| 5D-1026 |
CLAMP-HOSE
软管卡箍 |
8 | 949 |
| 185-8275 |
HOSE AS
软管组件 |
1 | 949 |
| 121-7136 |
SEAL-O-RING (ID=13.40mm)
O 形密封圈 |
2 | 949 |
| 7Y-8167 |
GROMMET
护孔环 |
1 | 949 |
| 7Y-8165 |
GROMMET
护孔环 |
2 | 949 |
| 7Y-8168 |
GROMMET
护孔环 |
1 | 949 |
| 139-7235 |
HOSE
泄放软管 |
2 | 949 |
| 122-9605 |
JOINT
接头 |
2 | 949 |
| 6V-7420 |
ADAPTER
接头 |
1 | 949 |
| 185-8272 |
HOSE AS
软管组件 |
1 | 949 |
| 121-7137 |
SEAL-O-RING (ID=10.80mm)
O 形密封圈 |
2 | 949 |
| 8T-4200 |
BOLT (L=16mm)
螺栓 |
2 | 949 |
| 6V-7357 |
BOLT (L=25mm)
螺栓 |
2 | 949 |
| 121-7098 |
BRACKET AS
支架组件 |
1 | 949 |
| 8T-4138 |
BOLT (L=20mm)
螺栓 |
2 | 949 |
| 3S-2093 |
STRAP
接地束带 |
3 | 949 |
