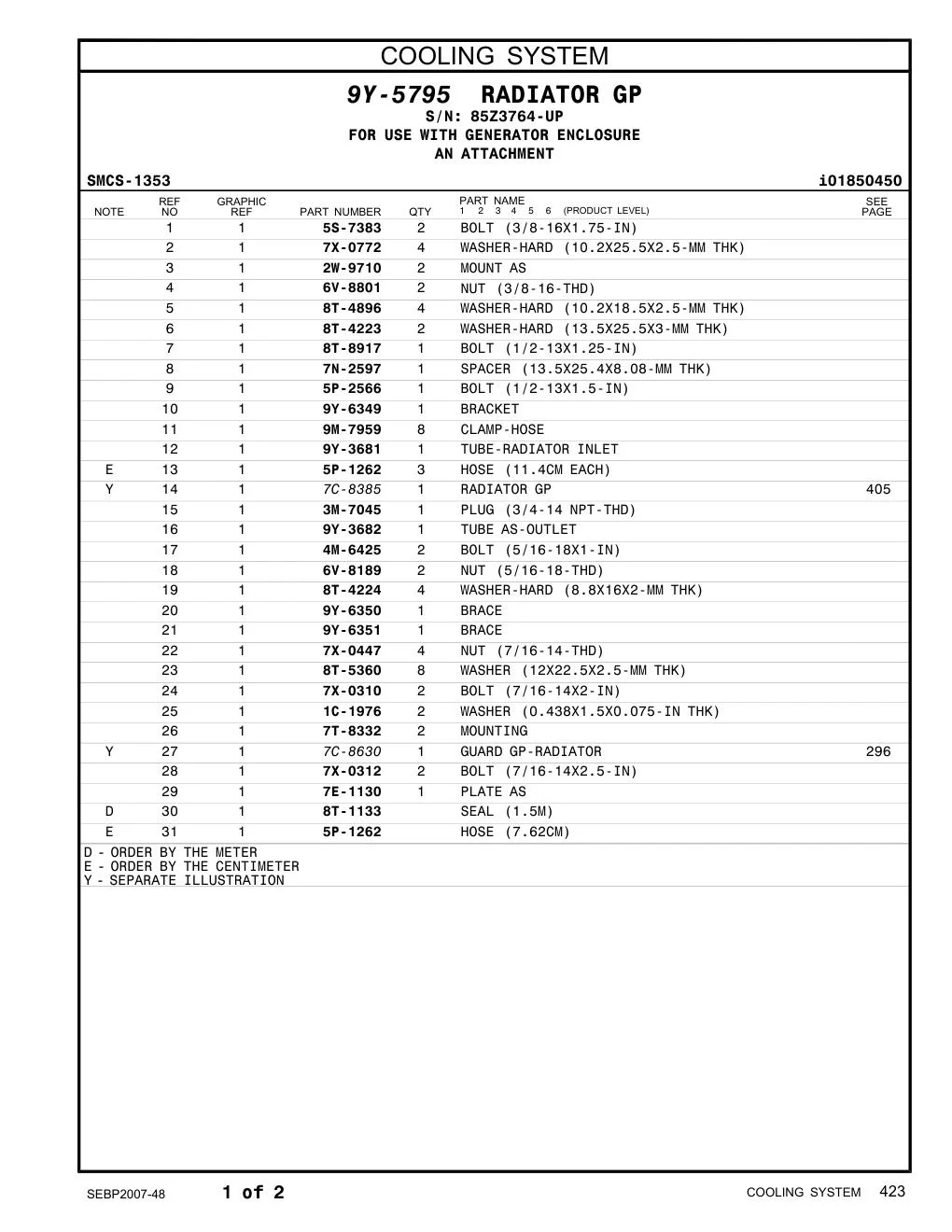

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 5S-7383 |
BOLT (3/8-16X1.75-IN)
螺栓 |
2 | 469 |
| 7X-0772 |
WASHER-HARD (10.2X25.5X2.5-MM THK)
硬垫圈 |
4 | 469 |
| 2W-9710 |
MOUNT AS
安装件组件 |
2 | 469 |
| 6V-8801 |
NUT (3/8-16-THD)
调速螺母 |
2 | 469 |
| 8T-4896 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
硬垫圈 |
4 | 469 |
| 8T-4223 |
WASHER
卡箍板 |
2 | 469 |
| 8T-8917 |
BOLT (1/2-13X1.25-IN)
螺栓 |
1 | 469 |
| 7N-2597 |
SPACER (13.5X25.4X8.08-MM THK)
间隔套 |
1 | 469 |
| 5P-2566 |
BOLT (1/2-13X1.5-IN)
螺栓 |
1 | 469 |
| 9Y-6349 |
BRACKET
支架 |
1 | 469 |
| 9M-7959 |
CLAMP-HOSE
软管卡箍 |
8 | 469 |
| 9Y-3681 |
TUBE-RADIATOR INLET
|
1 | 469 |
| 7C-8385 |
RADIATOR GP
|
1 | 469 |
| 9Y-3682 |
TUBE AS-OUTLET
|
1 | 469 |
| 4M-6425 |
BOLT (5/16-18X1-IN)
螺栓 |
2 | 469 |
| 6V-8189 |
NUT (5/16-18-THD)
调速螺母 |
2 | 469 |
| 8T-4224 |
WASHER
卡箍板 |
4 | 469 |
| 9Y-6350 |
BRACE
支撑 |
1 | 469 |
| 9Y-6351 |
BRACE
支撑 |
1 | 469 |
| 7X-0447 |
NUT (7/16-14-THD)
调速螺母 |
4 | 469 |
| 8T-5360 |
WASHER (12X22.5X2.5-MM THK)
止推垫圈 |
8 | 469 |
| 7X-0310 |
BOLT (7/16-14X2-IN)
螺栓 |
2 | 469 |
| 1C-1976 |
WASHER (0.438X1.5X0.075-IN THK)
止推垫圈 |
2 | 469 |
| 7T-8332 |
MOUNTING
安装件 |
2 | 469 |
| 7C-8630 |
GUARD GP-RADIATOR
|
1 | 469 |
| 7X-0312 |
BOLT (7/16-14X2.5-IN)
螺栓 |
2 | 469 |
| 7E-1130 |
PLATE AS
板组件 |
1 | 469 |
