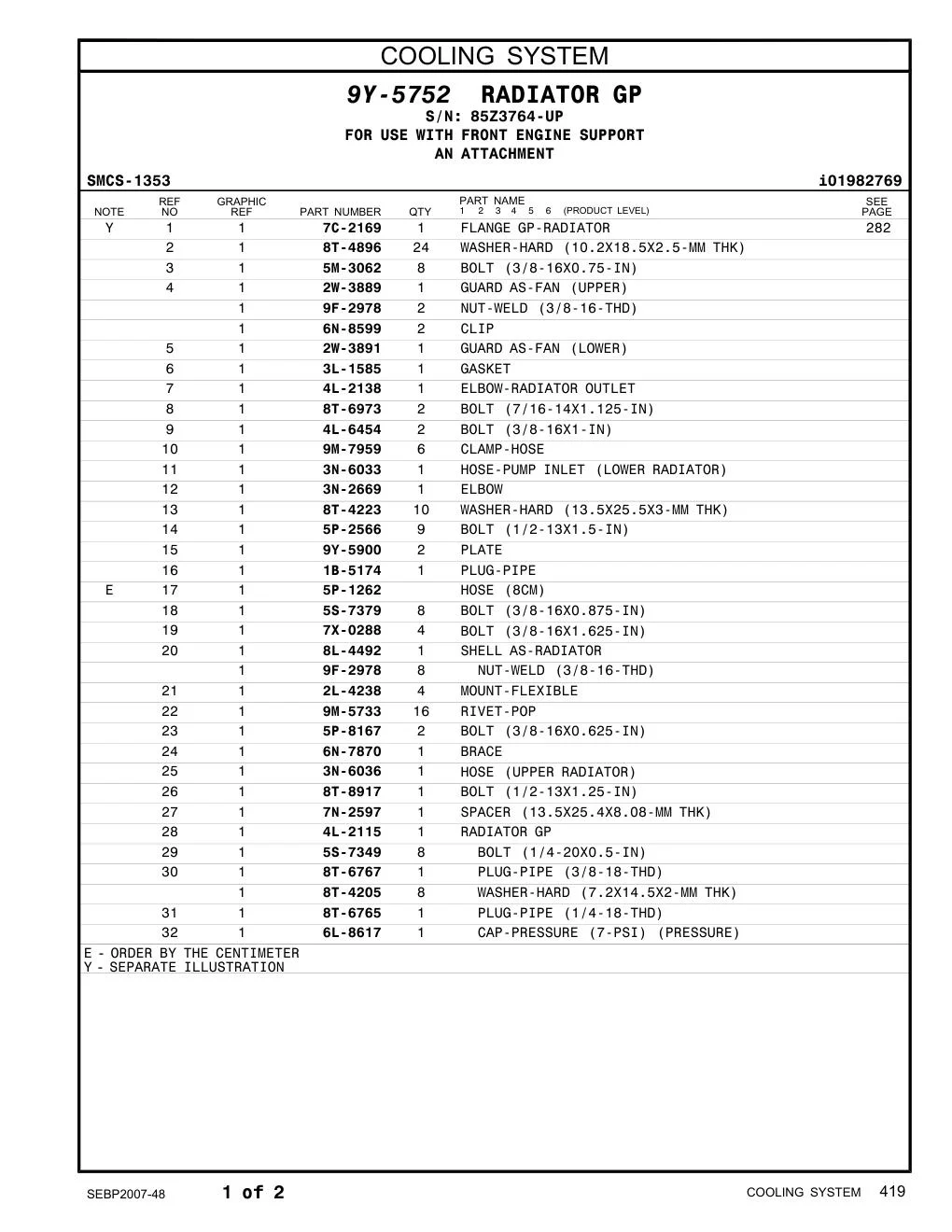

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 7C-2169 |
FLANGE GP-RADIATOR
|
1 | 465 |
| 8T-4896 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
硬垫圈 |
24 | 465 |
| 5M-3062 |
BOLT (3/8-16X0.75-IN)
螺栓 |
8 | 465 |
| 2W-3889 |
GUARD AS-FAN (UPPER)
|
1 | 465 |
| 9F-2978 |
NUT-WELD (3/8-16-THD)
焊接螺母 |
2 | 465 |
| 6N-8599 |
CLIP
卡箍 |
2 | 465 |
| 2W-3891 |
GUARD AS-FAN (LOWER)
|
1 | 465 |
| 3L-1585 |
GASKET
密封垫 |
1 | 465 |
| 4L-2138 |
ELBOW-RADIATOR OUTLET
|
1 | 465 |
| 8T-6973 |
BOLT (7/16-14X1.125-IN)
螺栓 |
2 | 465 |
| 4L-6454 |
BOLT (3/8-16X1-IN)
螺栓 |
2 | 465 |
| 9M-7959 |
CLAMP-HOSE
软管卡箍 |
6 | 465 |
| 3N-6033 |
HOSE-PUMP INLET (LOWER RADIATOR)
|
1 | 465 |
| 3N-2669 |
ELBOW
弯头 |
1 | 465 |
| 8T-4223 |
WASHER
卡箍板 |
10 | 465 |
| 5P-2566 |
BOLT (1/2-13X1.5-IN)
螺栓 |
9 | 465 |
| 9Y-5900 |
PLATE
凸轮斜盘 |
2 | 465 |
| 1B-5174 |
PLUG-PIPE
管螺塞 |
1 | 465 |
| 5S-7379 |
BOLT (3/8-16X0.875-IN)
螺栓 |
8 | 465 |
| 7X-0288 |
BOLT (3/8-16X1.625-IN)
螺栓 |
4 | 465 |
| 8L-4492 |
SHELL AS-RADIATOR
|
1 | 465 |
| 2L-4238 |
MOUNT-FLEXIBLE
|
4 | 465 |
| 9M-5733 |
RIVET-POP
|
16 | 465 |
| 5P-8167 |
BOLT (3/8-16X0.625-IN)
螺栓 |
2 | 465 |
| 6N-7870 |
BRACE
支撑 |
1 | 465 |
| 3N-6036 |
HOSE (UPPER RADIATOR)
软管 |
1 | 465 |
| 8T-8917 |
BOLT (1/2-13X1.25-IN)
螺栓 |
1 | 465 |
| 7N-2597 |
SPACER (13.5X25.4X8.08-MM THK)
间隔套 |
1 | 465 |
| 5S-7349 |
BOLT (1/4-20X0.5-IN)
螺栓 |
8 | 465 |
| 8T-6767 |
PLUG-PIPE
管螺塞 |
1 | 465 |
| 8T-4205 |
WASHER-HARD (7.2X14.5X2-MM THK)
硬垫圈 |
8 | 465 |
| 8T-6765 |
PLUG-PIPE
管螺塞 |
1 | 465 |
| 6L-8617 |
CAP-PRESSURE (7-PSI) (RADIATOR)
|
1 | 465 |
