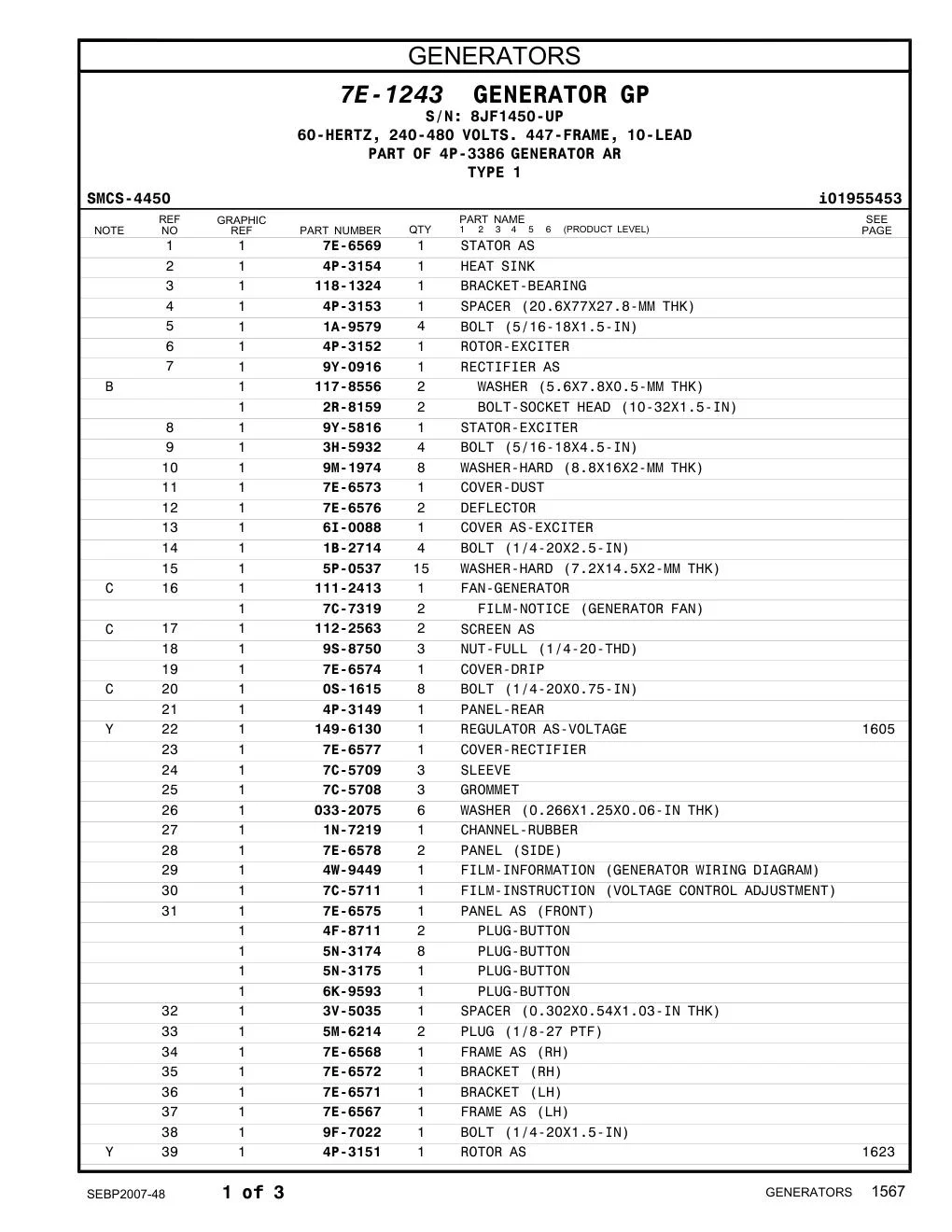

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 7E-6569 |
STATOR AS
定子组件 |
1 | 1610 |
| 4P-3154 |
HEAT SINK
|
1 | 1610 |
| 118-1324 |
BRACKET-BEARING
|
1 | 1610 |
| 4P-3153 |
SPACER (20.6X77X27.8-MM THK)
间隔套 |
1 | 1610 |
| 1A-9579 |
BOLT (5/16-18X1.5-IN)
螺栓 |
4 | 1610 |
| 4P-3152 |
ROTOR-EXCITER
|
1 | 1610 |
| 9Y-0916 |
RECTIFIER AS
|
1 | 1610 |
| 9Y-5816 |
STATOR-EXCITER
|
1 | 1610 |
| 3H-5932 |
BOLT (5/16-18X4.5-IN)
螺栓 |
4 | 1610 |
| 9M-1974 |
WASHER-HARD (8.8X16X2-MM THK)
硬垫圈 |
8 | 1610 |
| 7E-6573 |
COVER-DUST
|
1 | 1610 |
| 7E-6576 |
DEFLECTOR
|
2 | 1610 |
| 6I-0088 |
COVER AS-EXCITER
|
1 | 1610 |
| 1B-2714 |
BOLT (1/4-20X2.5-IN)
螺栓 |
4 | 1610 |
| 5P-0537 |
WASHER-HARD (7.2X14.5X2-MM THK)
硬垫圈 |
15 | 1610 |
| 6L-3498 |
FAN-GENERATOR
|
1 | 1610 |
| 7E-6570 |
SCREEN AS
滤网组件 |
1 | 1610 |
| 9Y-2970 |
RETAINER
固定器 |
2 | 1610 |
| 5N-3886 |
SCREW (10-32X1.5-IN)
螺钉 |
2 | 1610 |
| 9S-8750 |
NUT-FULL (1/4-20-THD)
全高螺母 |
3 | 1610 |
| 7E-6574 |
COVER-DRIP
|
1 | 1610 |
| 9F-7022 |
BOLT (1/4-20X1.5-IN)
螺栓 |
1 | 1610 |
| 4P-3149 |
PANEL-REAR
|
1 | 1610 |
| 149-6130 |
REGULATOR AS-VOLTAGE
|
1 | 1610 |
| 7E-6577 |
COVER-RECTIFIER
|
1 | 1610 |
| 7C-5709 |
SLEEVE
套筒 |
3 | 1610 |
| 7C-5708 |
GROMMET
护孔环 |
3 | 1610 |
| 033-2075 |
WASHER (0.266X1.25X0.06-IN THK)
止推垫圈 |
6 | 1610 |
| 1N-7219 |
CHANNEL-RUBBER
|
1 | 1610 |
| 7E-6578 |
PANEL
面板 |
2 | 1610 |
| 4B-2049 |
NUT (10-32-THD)
调速螺母 |
2 | 1610 |
| 4P-3150 |
COVER AS
前盖组件 |
1 | 1610 |
| 5N-3167 |
SEAL-RING
|
2 | 1610 |
| 5N-3176 |
PLUG-BUTTON
按钮塞 |
2 | 1610 |
| 6D-7128 |
SEAL-O-RING
O 形密封圈 |
4 | 1610 |
| 8P-7065 |
PLUG-BUTTON
按钮塞 |
2 | 1610 |
| 8T-9587 |
SEAL-O-RING
O 形密封圈 |
2 | 1610 |
| 030-2284 |
PLUG-BUTTON
按钮塞 |
4 | 1610 |
| 7E-6575 |
PANEL AS
面板组件 |
1 | 1610 |
| 4F-8711 |
PLUG-BUTTON
按钮塞 |
2 | 1610 |
| 5N-3174 |
PLUG-BUTTON
按钮塞 |
8 | 1610 |
| 5N-3175 |
PLUG-BUTTON
按钮塞 |
1 | 1610 |
| 6K-9593 |
PLUG-BUTTON
按钮塞 |
1 | 1610 |
| 0S-1615 |
BOLT (1/4-20X0.75-IN)
螺栓 |
4 | 1610 |
| 5M-6214 |
PLUG-PIPE
管螺塞 |
2 | 1610 |
| 7E-6568 |
FRAME AS (RH)
上机架组件 |
1 | 1610 |
| 117-8556 |
WASHER (5.6X7.8X0.5-MM THK)
止推垫圈 |
2 | 1613 |
| 2R-8159 |
BOLT-SOCKET HEAD (10-32X1.5-IN)
内六角螺栓 |
2 | 1613 |
| 7E-6578 |
PANEL
面板 |
2 | 1613 |
| 4W-9449 |
FILM-INFORMATION (GENERATOR WIRING DIAGRAM)
信息标牌 |
1 | 1613 |
