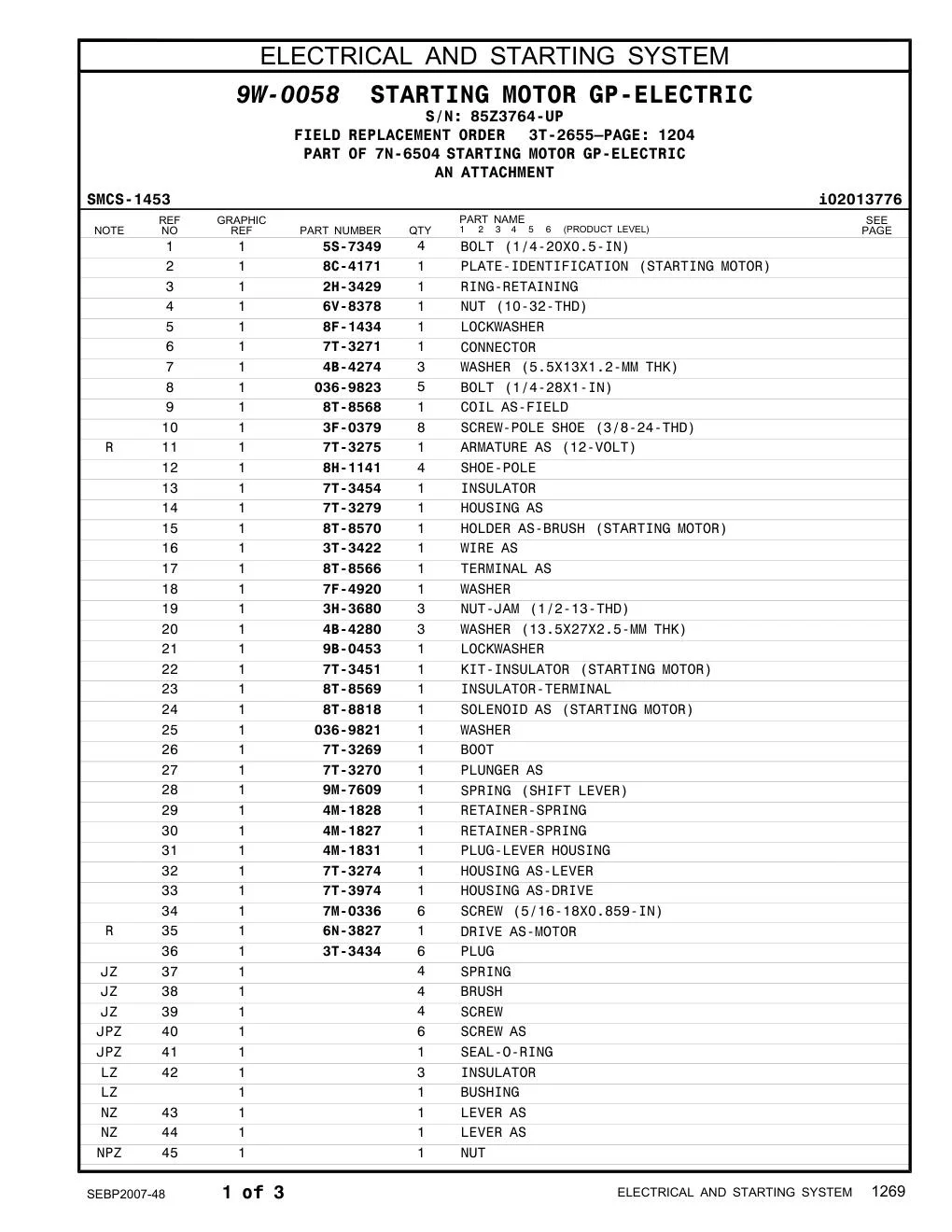

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 5S-7349 |
BOLT (1/4-20X0.5-IN)
螺栓 |
4 | 1315 |
| 8C-4171 |
PLATE-IDENTIFICATION (STARTING MOTOR)
|
1 | 1315 |
| 2H-3429 |
RING-RETAINING
挡圈 |
1 | 1315 |
| 6V-8378 |
NUT (10-32-THD)
调速螺母 |
1 | 1315 |
| 8F-1434 |
LOCKWASHER
锁紧垫圈 |
1 | 1315 |
| 7T-3271 |
CONNECTOR
接头 |
1 | 1315 |
| 4B-4274 |
WASHER (5.5X13X1.2-MM THK)
止推垫圈 |
3 | 1315 |
| 036-9823 |
BOLT (1/4-28X1-IN)
螺栓 |
5 | 1315 |
| 8T-8568 |
COIL AS-FIELD
磁场线圈组件 |
1 | 1315 |
| 3F-0379 |
SCREW-POLE SHOE (3/8-24-THD)
|
8 | 1315 |
| 8H-1141 |
SHOE-POLE
磁极 |
4 | 1315 |
| 7T-3454 |
INSULATOR
绝缘体 |
1 | 1315 |
| 7T-3279 |
HOUSING AS
壳体组件 |
1 | 1315 |
| 8T-8570 |
HOLDER AS-BRUSH
碳刷座组件 |
1 | 1315 |
| 3T-3422 |
WIRE AS
导线组件 |
1 | 1315 |
| 8T-8566 |
TERMINAL AS
端子组件 |
1 | 1315 |
| 3H-3680 |
NUT-JAM (1/2-13 THD)
防松螺母 |
3 | 1315 |
| 4B-4280 |
WASHER (13.5X27X2.5-MM THK)
止推垫圈 |
3 | 1315 |
| 9B-0453 |
LOCKWASHER
锁紧垫圈 |
1 | 1315 |
| 7T-3451 |
INSULATOR-TERMINAL
端子绝缘体 |
1 | 1315 |
| 8T-8569 |
INSULATOR-TERMINAL
端子绝缘体 |
1 | 1315 |
| 8T-8818 |
SOLENOID AS (STARTING MOTOR)
电磁阀组件 |
1 | 1315 |
| 036-9821 |
WASHER
卡箍板 |
1 | 1315 |
| 7T-3269 |
BOOT
罩 |
1 | 1315 |
| 7T-3270 |
PLUNGER AS
柱塞组件 |
1 | 1315 |
| 9M-7609 |
SPRING (SHIFT LEVER)
制动弹簧 |
1 | 1315 |
| 4M-1828 |
RETAINER-SPRING
弹簧座圈 |
1 | 1315 |
| 4M-1827 |
RETAINER-SPRING
弹簧座圈 |
1 | 1315 |
| 4M-1831 |
PLUG-LEVER HOUSING
拨 壳螺塞 |
1 | 1315 |
| 7T-3274 |
HOUSING AS-LEVER
|
1 | 1315 |
| 7T-3974 |
HOUSING AS-DRIVE
驱动壳体组件 |
1 | 1315 |
| 7M-0336 |
SCREW (22.23MM LONG)
螺钉 |
6 | 1315 |
| 3T-3434 |
PLUG
O 形圈螺塞 |
6 | 1315 |
