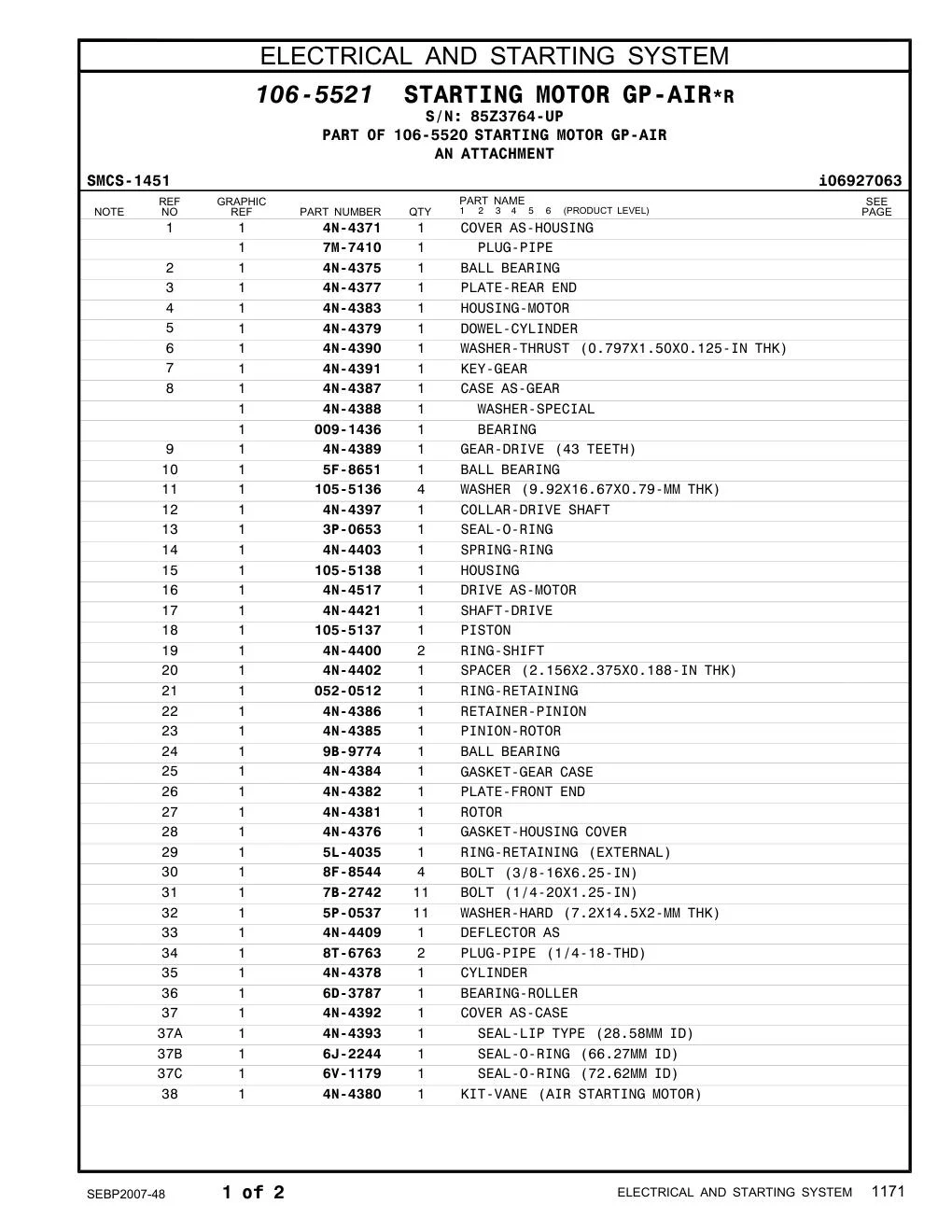

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 4N-4371 |
COVER AS-HOUSING
|
1 | 1217 |
| 7M-7410 |
PLUG
O 形圈螺塞 |
1 | 1217 |
| 4N-4375 |
BALL BEARING
球轴承 |
1 | 1217 |
| 4N-4377 |
PLATE-REAR END
|
1 | 1217 |
| 4N-4383 |
HOUSING-MOTOR
|
1 | 1217 |
| 4N-4379 |
DOWEL-CYLINDER
|
1 | 1217 |
| 4N-4390 |
WASHER-THRUST
止推垫圈 |
1 | 1217 |
| 4N-4391 |
KEY-GEAR
|
1 | 1217 |
| 4N-4387 |
CASE AS-GEAR
|
1 | 1217 |
| 4N-4388 |
WASHER-EJECTION
|
1 | 1217 |
| 009-1436 |
BEARING
前轴承 |
1 | 1217 |
| 4N-4389 |
GEAR-DRIVE (43 TEETH)
驱动齿轮 |
1 | 1217 |
| 5F-8651 |
BALL BEARING
球轴承 |
1 | 1217 |
| 105-5136 |
WASHER
卡箍板 |
4 | 1217 |
| 4N-4397 |
COLLAR-DRIVE SHAFT
|
1 | 1217 |
| 3P-0653 |
SEAL-O-RING
O 形密封圈 |
1 | 1217 |
| 4N-4403 |
SPRING-RING
|
1 | 1217 |
| 105-5138 |
HOUSING
壳体 |
1 | 1217 |
| 4N-4517 |
DRIVE AS-MOTOR
马达驱动组件 |
1 | 1217 |
| 4N-4421 |
SHAFT-DRIVE
主动轴 |
1 | 1217 |
| 105-5137 |
PISTON
制动活塞 |
1 | 1217 |
| 4N-4400 |
RING-SHIFT
|
2 | 1217 |
| 4N-4402 |
SPACER (2.156X2.375X0.188-IN THK)
间隔套 |
1 | 1217 |
| 052-0512 |
RING-RETAINING
挡圈 |
1 | 1217 |
| 4N-4386 |
RETAINER-PINION
|
1 | 1217 |
| 4N-4385 |
PINION-ROTOR
|
1 | 1217 |
| 4N-4384 |
GASKET-GEAR CASE
|
1 | 1217 |
| 4N-4382 |
PLATE-FRONT END
|
1 | 1217 |
| 4N-4381 |
ROTOR
转子 |
1 | 1217 |
| 4N-4376 |
GASKET-HOUSING COVER
|
1 | 1217 |
| 5L-4035 |
RING-RETAINING (EXTERNAL)
挡圈 |
1 | 1217 |
| 8F-8544 |
BOLT (3/8-16X6.25-IN)
螺栓 |
4 | 1217 |
| 7B-2742 |
BOLT (1/4-20X1.25-IN)
螺栓 |
11 | 1217 |
| 5P-0537 |
WASHER-HARD (7.2X14.5X2-MM THK)
硬垫圈 |
11 | 1217 |
| 4N-4409 |
DEFLECTOR AS
|
1 | 1217 |
| 8T-6763 |
PLUG-PIPE
管螺塞 |
2 | 1217 |
| 4N-4378 |
CYLINDER
油缸 |
1 | 1217 |
| 6D-3787 |
BEARING-ROLLER
滚柱轴承 |
1 | 1217 |
| 4N-4392 |
COVER AS-CASE
|
1 | 1217 |
| 4N-4380 |
KIT-VANE (AIR STARTING MOTOR)
|
1 | 1217 |
