| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 4N-3828 |

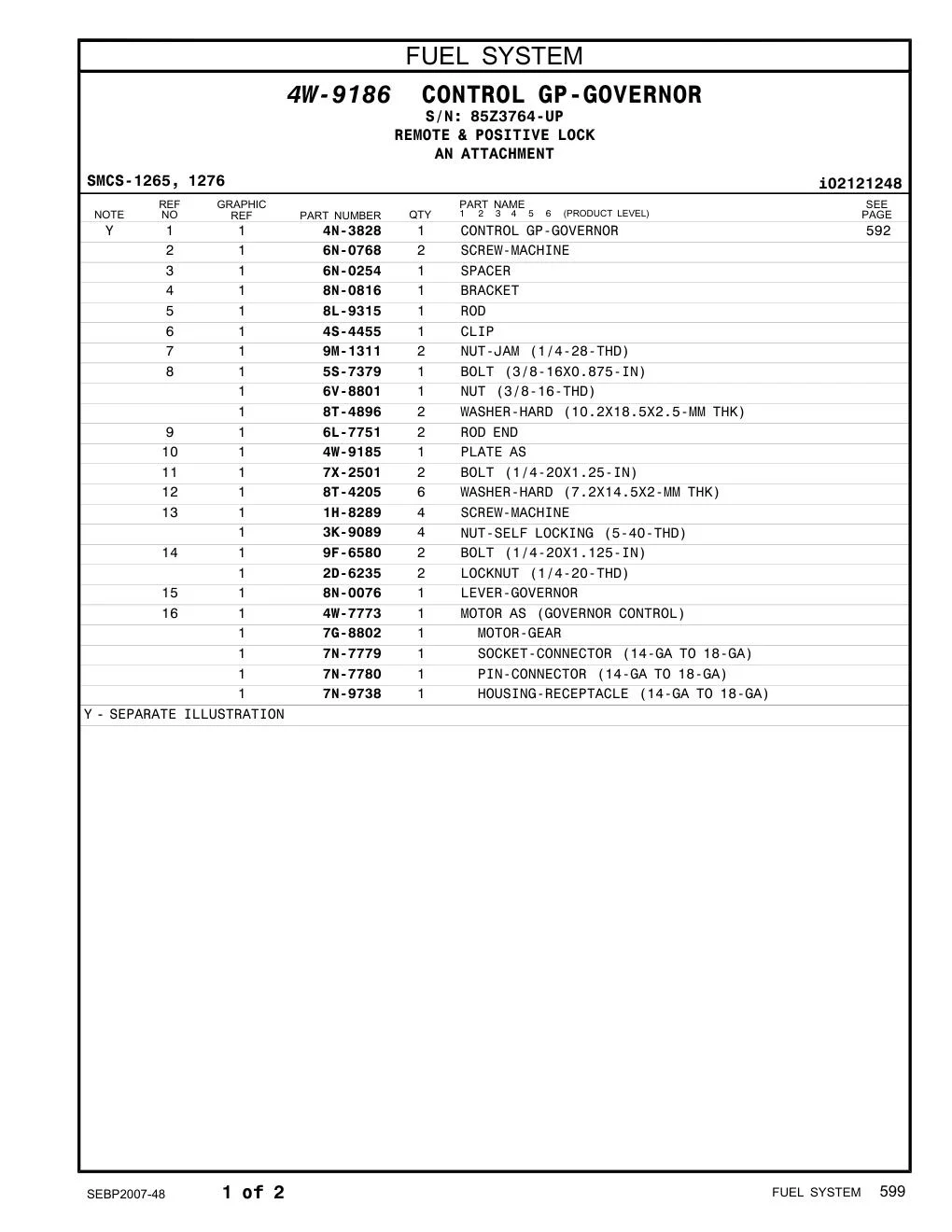

CONTROL GP-GOVERNOR
|
1 | 645 |
| 6N-0768 |
SCREW-MACHINE
机器螺钉 |
2 | 645 |
| 6N-0254 |
SPACER
间隔套 |
1 | 645 |
| 8N-0816 |
BRACKET
支架 |
1 | 645 |
| 8L-9315 |
ROD
杆 |
1 | 645 |
| 4S-4455 |
CLIP
卡箍 |
1 | 645 |
| 9M-1311 |
NUT-JAM (1/4-28-THD)
防松螺母 |
2 | 645 |
| 5S-7379 |
BOLT (3/8-16X0.875-IN)
螺栓 |
1 | 645 |
| 6V-8801 |
NUT (3/8-16-THD)
调速螺母 |
1 | 645 |
| 8T-4896 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
硬垫圈 |
2 | 645 |
| 6L-7751 |
ROD END
|
2 | 645 |
| 4W-9185 |
PLATE AS
板组件 |
1 | 645 |
| 7X-2501 |
BOLT (1/4-20X1.25-IN)
螺栓 |
2 | 645 |
| 8T-4205 |
WASHER-HARD (7.2X14.5X2-MM THK)
硬垫圈 |
6 | 645 |
| 1H-8289 |
SCREW-MACHINE
机器螺钉 |
4 | 645 |
| 3K-9089 |
NUT-SELF LOCKING (5-40-THD)
|
4 | 645 |
| 2D-6235 |
LOCKNUT (1/4-20-THD)
锁紧螺母 |
2 | 645 |
| 8N-0076 |
LEVER-GOVERNOR
|
1 | 645 |
| 4W-7773 |
MOTOR AS (GOVERNOR CONTROL)
马达组件 |
1 | 645 |
| 7G-8802 |
MOTOR-GEAR
|
1 | 645 |
| 7N-7779 |
SOCKET-CONNECTOR (14-GA TO 18-GA)
|
1 | 645 |
| 7N-7780 |
PIN-CONNECTOR (14-GA TO 18-GA)
连接销 |
1 | 645 |
| 7N-9738 |
HOUSING-RECEPTACLE
|
1 | 645 |
