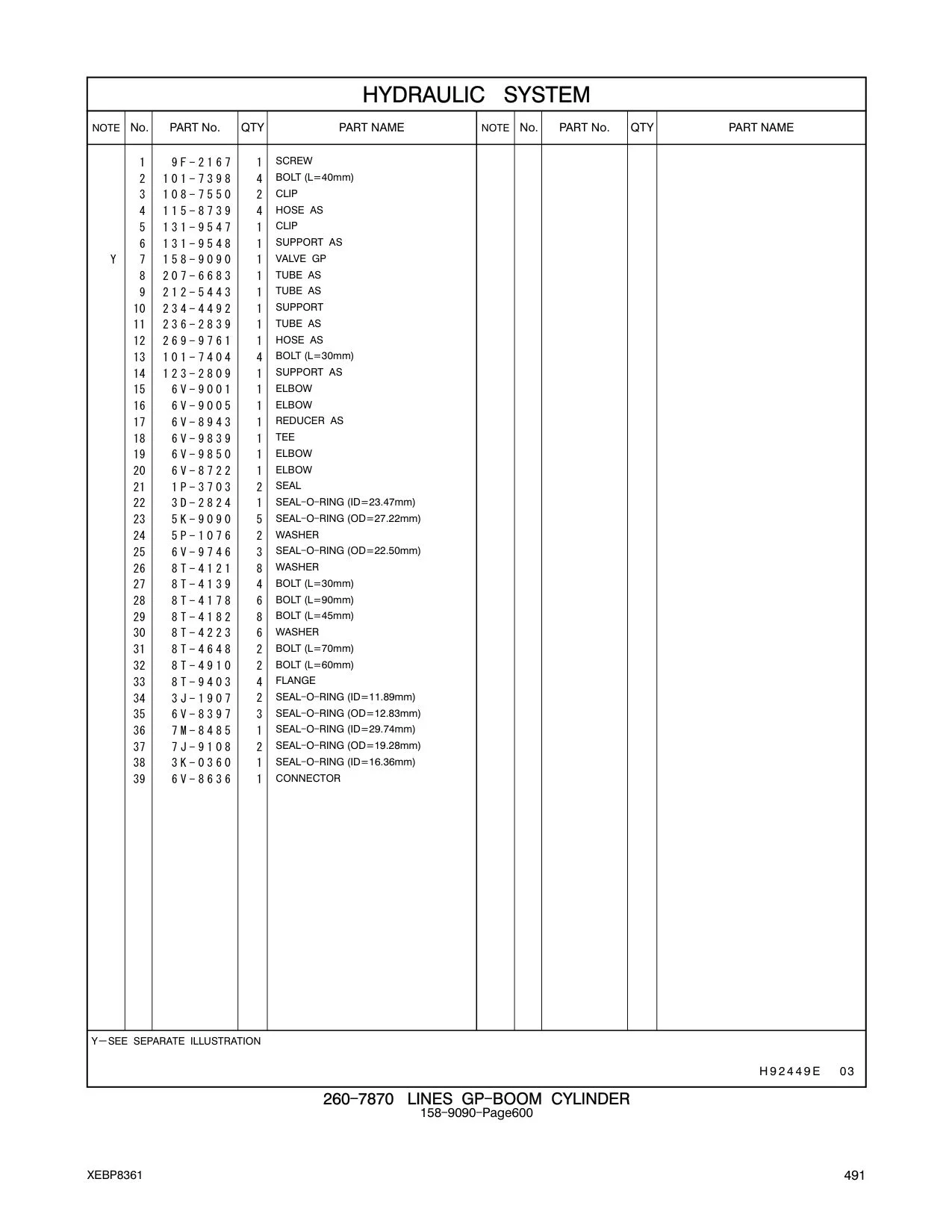

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 9F-2167 |
SCREW
自攻螺钉 |
1 | 545 |
| 101-7398 |
BOLT (L=40mm)
螺栓 |
4 | 545 |
| 108-7550 |
CLIP
卡箍 |
2 | 545 |
| 115-8739 |
HOSE AS
软管组件 |
4 | 545 |
| 131-9547 |
CLIP
卡箍 |
1 | 545 |
| 131-9548 |
SUPPORT AS
支承组件 |
1 | 545 |
| 158-9090 |
VALVE GP
阀总成 |
1 | 545 |
| 207-6683 |
TUBE AS
右管子组件 |
1 | 545 |
| 212-5443 |
TUBE AS
右管子组件 |
1 | 545 |
| 234-4492 |
SUPPORT
支承 |
1 | 545 |
| 269-9761 |
HOSE AS
软管组件 |
1 | 545 |
| 101-7404 |
BOLT (L=30mm)
螺栓 |
4 | 545 |
| 123-2809 |
SUPPORT AS
支承组件 |
1 | 545 |
| 6V-9001 |
ELBOW
弯头 |
1 | 545 |
| 6V-9005 |
ELBOW
弯头 |
1 | 545 |
| 6V-8943 |
REDUCER AS
渐缩管组件 |
1 | 545 |
| 6V-9839 |
TEE
O 形密封圈端口三通 |
1 | 545 |
| 6V-9850 |
ELBOW
弯头 |
1 | 545 |
| 6V-8722 |
ELBOW
弯头 |
1 | 545 |
| 1P-3703 |
SEAL
O 形密封圈 |
2 | 545 |
| 3D-2824 |
SEAL-O-RING (ID=23.47mm)
O 形密封圈 |
1 | 545 |
| 5K-9090 |
SEAL-O-RING (OD=27.22mm)
O 形密封圈 |
5 | 545 |
| 5P-1076 |
WASHER
卡箍板 |
2 | 545 |
| 6V-9746 |
SEAL-O-RING (OD=22.50mm)
O 形密封圈 |
3 | 545 |
| 8T-4121 |
WASHER
卡箍板 |
8 | 545 |
| 8T-4139 |
BOLT (L=30mm)
螺栓 |
4 | 545 |
| 8T-4178 |
BOLT (L=90mm)
螺栓 |
6 | 545 |
| 8T-4182 |
BOLT (L=45mm)
螺栓 |
8 | 545 |
| 8T-4223 |
WASHER
卡箍板 |
6 | 545 |
| 8T-4648 |
BOLT (L=70mm)
螺栓 |
2 | 545 |
| 8T-4910 |
BOLT (L=60mm)
螺栓 |
2 | 545 |
| 8T-9403 |
FLANGE
半边 |
4 | 545 |
| 3J-1907 |
SEAL-O-RING (ID=11.89mm)
O 形密封圈 |
2 | 545 |
| 6V-8397 |
SEAL-O-RING (OD=12.83mm)
O 形密封圈 |
3 | 545 |
| 7M-8485 |
SEAL-O-RING (ID=29.74mm)
O 形密封圈 |
1 | 545 |
| 7J-9108 |
SEAL-O-RING (OD=19.28mm)
O 形密封圈 |
2 | 545 |
| 3K-0360 |
SEAL-O-RING (ID=16.36mm)
O 形密封圈 |
1 | 545 |
| 6V-8636 |
CONNECTOR
接头 |
1 | 545 |
