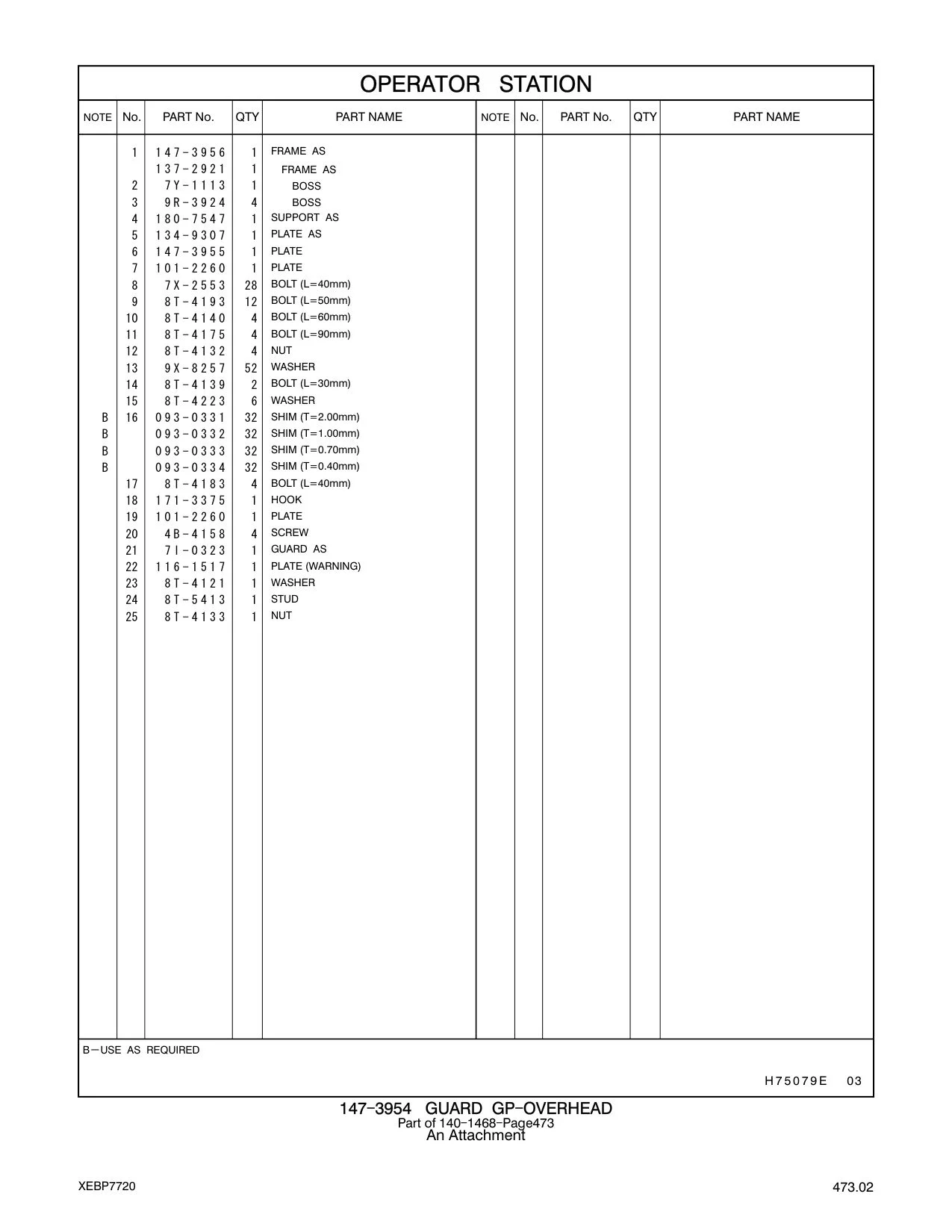

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 147-3956 |
FRAME AS
上机架组件 |
1 | 719 |
| 180-7547 |
SUPPORT AS
支承组件 |
1 | 719 |
| 134-9307 |
PLATE AS
板组件 |
1 | 719 |
| 147-3955 |
PLATE
凸轮斜盘 |
1 | 719 |
| 101-2260 |
PLATE
凸轮斜盘 |
1 | 719 |
| 7X-2553 |
BOLT (L=40mm)
螺栓 |
28 | 719 |
| 8T-4193 |
BOLT (L=50mm)
螺栓 |
12 | 719 |
| 8T-4140 |
BOLT (L=60mm)
螺栓 |
4 | 719 |
| 8T-4175 |
BOLT (L=90mm)
螺栓 |
4 | 719 |
| 8T-4132 |
NUT
螺母 |
4 | 719 |
| 9X-8257 |
WASHER
卡箍板 |
52 | 719 |
| 8T-4139 |
BOLT (L=30mm)
螺栓 |
2 | 719 |
| 8T-4223 |
WASHER
卡箍板 |
6 | 719 |
| 093-0331 |
SHIM (T=2.00mm)
调整垫片 |
32 | 719 |
| 8T-4183 |
BOLT (L=40mm)
螺栓 |
4 | 719 |
| 171-3375 |
HOOK
挂钩 |
1 | 719 |
| 4B-4158 |
SCREW
自攻螺钉 |
4 | 719 |
| 7I-0323 |
GUARD AS
导向护板组件 |
1 | 719 |
| 116-1517 |
PLATE (WARNING)
加强板 |
1 | 719 |
| 8T-4121 |
WASHER
卡箍板 |
1 | 719 |
| 8T-4133 |
NUT
螺母 |
1 | 719 |
