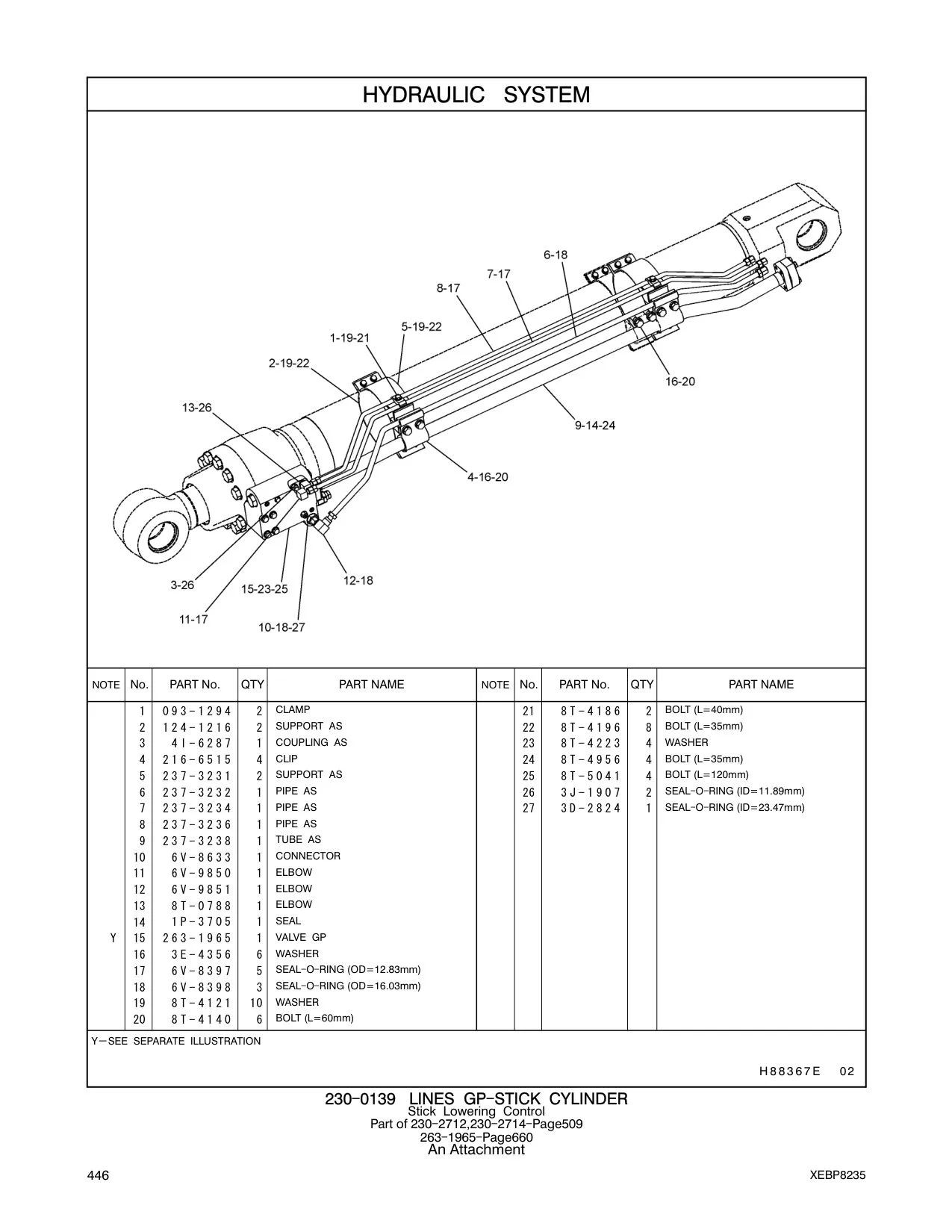

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 093-1294 |
CLAMP 21 8T-4186 2 BOLT (L=40mm)
|
2 | 465 |
| 124-1216 |
SUPPORT AS
支承组件 |
2 | 465 |
| 4I-6287 |
COUPLING AS 23 8T-4223 4 WASHER
|
1 | 465 |
| 216-6515 |
CLIP 24 8T-4956 4 BOLT (L=35mm)
|
4 | 465 |
| 237-3231 |
SUPPORT AS 25 8T-5041 4 BOLT (L=120mm)
|
2 | 465 |
| 237-3232 |
PIPE AS 26 3J-1907 2 SEAL-O-RING (ID=11.89mm)
|
1 | 465 |
| 237-3236 |
PIPE AS
排 组件 |
1 | 465 |
| 237-3238 |
TUBE AS
右管子组件 |
1 | 465 |
| 6V-8633 |
CONNECTOR
接头 |
1 | 465 |
| 6V-9850 |
ELBOW
弯头 |
1 | 465 |
| 6V-9851 |
ELBOW
弯头 |
1 | 465 |
| 8T-0788 |
ELBOW
弯头 |
1 | 465 |
| 1P-3705 |
SEAL
O 形密封圈 |
1 | 465 |
| 263-1965 |
VALVE GP
阀总成 |
1 | 465 |
| 3E-4356 |
WASHER
卡箍板 |
6 | 465 |
| 6V-8397 |
SEAL-O-RING (OD=12.83mm)
O 形密封圈 |
5 | 465 |
| 6V-8398 |
SEAL-O-RING (OD=16.03mm)
O 形密封圈 |
3 | 465 |
| 8T-4121 |
WASHER
卡箍板 |
10 | 465 |
| 8T-4140 |
BOLT (L=60mm)
螺栓 |
6 | 465 |
