CAT 3512 5P-0076 Parts Manual Diagram - BOLT-12 POINT HEAD (3/8-16X1.5-IN)

Home › Parts Manual › CAT 3512 › 5P-0076

Part No.

5P-0076

Name (EN)

BOLT-12 POINT HEAD (3/8-16X1.5-IN)

Name (CN)

尖端头螺栓

Qty

16 per assembly

Group

4W-1774

System

BASIC ENGINE

Source

CAT Official Parts Manual

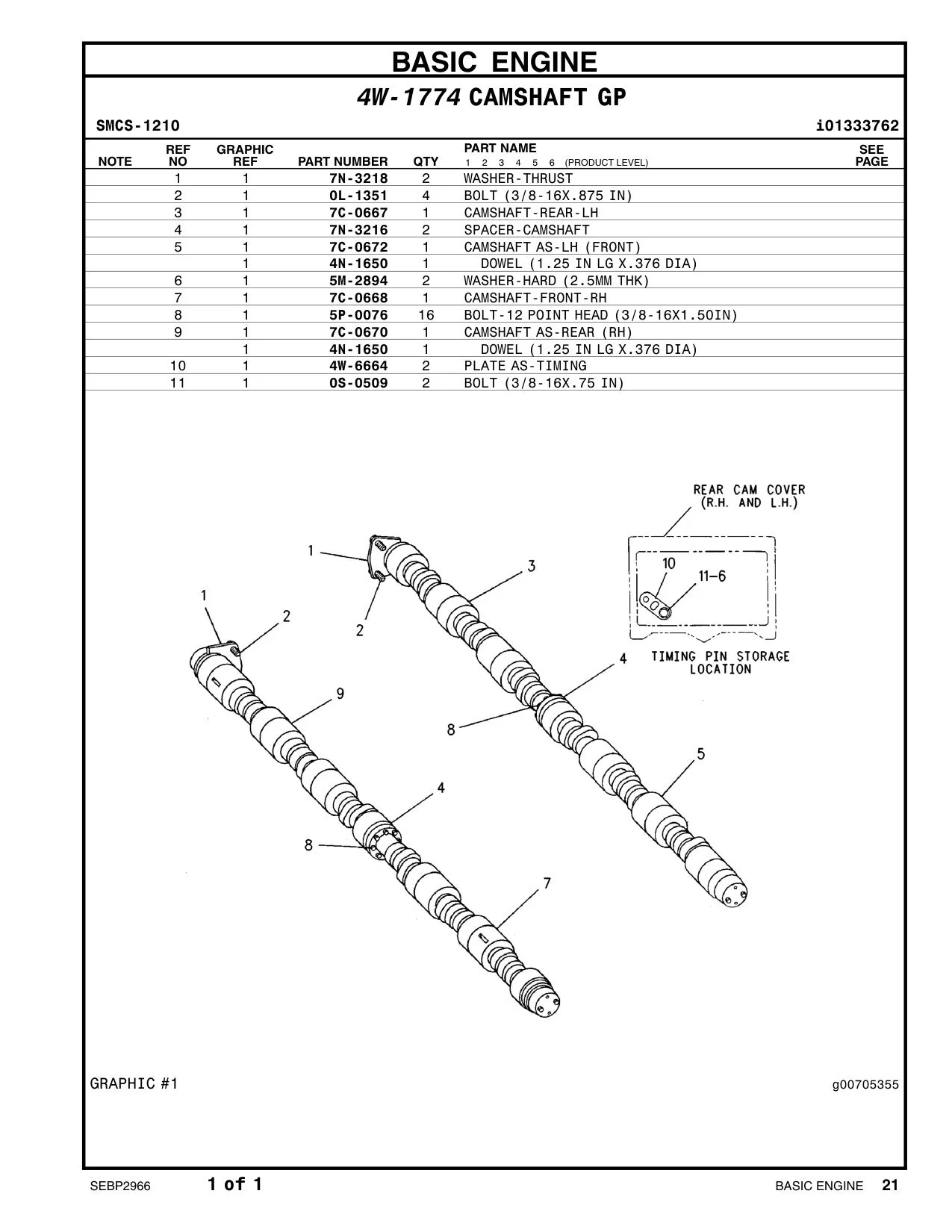

※ Click image to zoom · Page 130 of official CAT 3512 parts manual

Part No.	Name	Qty	Page
7N-3218	WASHER-THRUST 止推垫圈	2	130
0L-1351	BOLT (3/8-16X0.875-IN) 螺栓	4	130
7C-0667	CAMSHAFT-REAR-LH	1	130
7N-3216	SPACER (35.035X84X12-MM THK) 间隔套	2	130
7C-0672	CAMSHAFT AS-LH (FRONT)	1	130
4N-1650	DOWEL 销	1	130
5M-2894	WASHER-HARD (10.2X18.5X2.5-MM THK) 硬垫圈	2	130
7C-0668	CAMSHAFT-FRONT-RH	1	130
7C-0670	CAMSHAFT AS-REAR (RH)	1	130
4W-6664	PLATE AS-TIMING	2	130
0S-0509	BOLT (3/8-16X0.75-IN) 螺栓	2	130
7N-3218	WASHER-THRUST 止推垫圈	2	65
1A-2029	BOLT (3/8-16X1.125-IN) 螺栓	4	65
7N-3216	SPACER (35.035X84X12-MM THK) 间隔套	2	65
4N-1650	DOWEL 销	1	65
5M-2894	WASHER-HARD (10.2X18.5X2.5-MM THK) 硬垫圈	2	65
4W-6664	PLATE AS-TIMING	2	65
0S-0509	BOLT (3/8-16X0.75-IN) 螺栓	2	65
8M-9024	WASHER-HARD (10.2X22.5X5-MM THK) 硬垫圈	4	65
