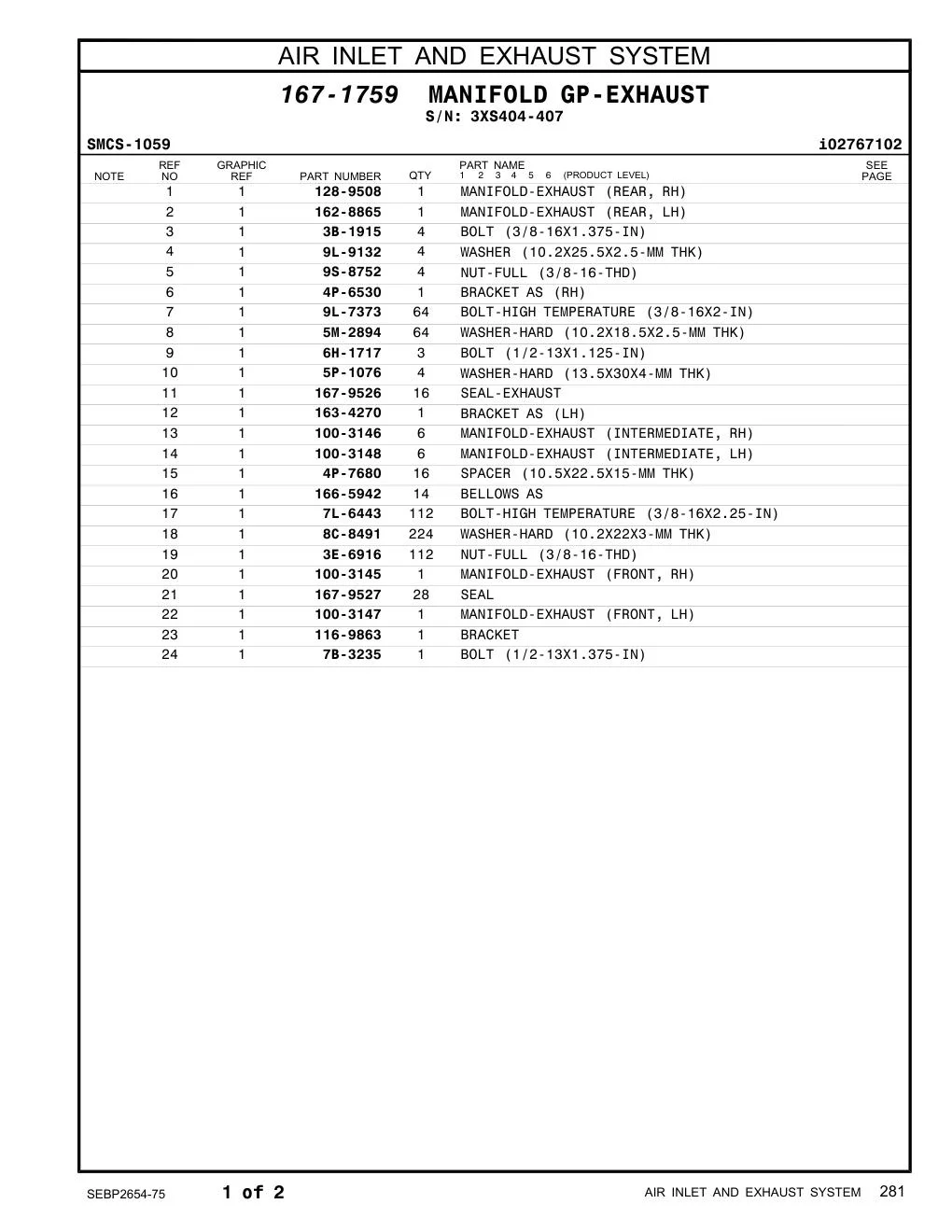

| 零件号 | 零件名称 | 数量 | 页码 |
|---|---|---|---|
| 128-9508 |
MANIFOLD-EXHAUST (REAR, RH)
排气歧管 |
1 | 307 |
| 162-8865 |
MANIFOLD-EXHAUST (REAR, LH)
排气歧管 |
1 | 307 |
| 3B-1915 |
BOLT (3/8-16X1.375-IN)
螺栓 |
4 | 307 |
| 9L-9132 |
WASHER (10.2X25.5X2.5-MM THK)
垫圈 |
4 | 307 |
| 9S-8752 |
NUT-FULL (3/8-16-THD)
全高螺母 |
4 | 307 |
| 4P-6530 |
BRACKET AS (RH)
支架组件 |
1 | 307 |
| 9L-7373 |
BOLT-HIGH TEMPERATURE (3/8-16X2-IN)
高温螺栓 |
64 | 307 |
| 5M-2894 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
硬垫圈 |
64 | 307 |
| 6H-1717 |
BOLT (1/2-13X1.125-IN)
螺栓 |
3 | 307 |
| 5P-1076 |
WASHER
卡箍板 |
4 | 307 |
| 167-9526 |
SEAL (SPRING ENERGIZED)
密封件 |
16 | 307 |
| 163-4270 |
BRACKET AS (LH)
支架组件 |
1 | 307 |
| 100-3146 |
MANIFOLD-EXHAUST (INTERMEDIATE, RH)
排气歧管 |
6 | 307 |
| 100-3148 |
MANIFOLD-EXHAUST (INTERMEDIATE, LH)
排气歧管 |
6 | 307 |
| 166-5942 |
BELLOWS AS
|
14 | 307 |
| 7L-6443 |
BOLT-HIGH TEMPERATURE (3/8-16X2.25-IN)
高温螺栓 |
112 | 307 |
| 8C-8491 |
WASHER-HARD (10.2X22X3-MM THK)
硬垫圈 |
224 | 307 |
| 3E-6916 |
NUT-FULL (3/8-16-THD)
全高螺母 |
112 | 307 |
| 100-3145 |
MANIFOLD-EXHAUST (FRONT, RH)
排气歧管 |
1 | 307 |
| 167-9527 |
SEAL (SPRING ENERGIZED)
密封件 |
28 | 307 |
| 100-3147 |
MANIFOLD-EXHAUST (FRONT, LH)
排气歧管 |
1 | 307 |
| 116-9863 |
BRACKET
支架 |
1 | 307 |
| 7B-3235 |
BOLT (1/2-13X1.375-IN)
螺栓 |
1 | 307 |
| 254-3261 |
BRACKET AS (RH)
支架组件 |
1 | 309 |
| 428-9129 |
GASKET
密封垫 |
16 | 309 |
| 254-3262 |
BRACKET AS (LH)
支架组件 |
1 | 309 |
| 207-1364 |
BELLOWS AS
|
14 | 309 |
| 110-8314 |
WASHER (10.3X18.3X2.66-MM THK)
垫圈 |
224 | 309 |
| 428-9130 |
GASKET
密封垫 |
28 | 309 |
