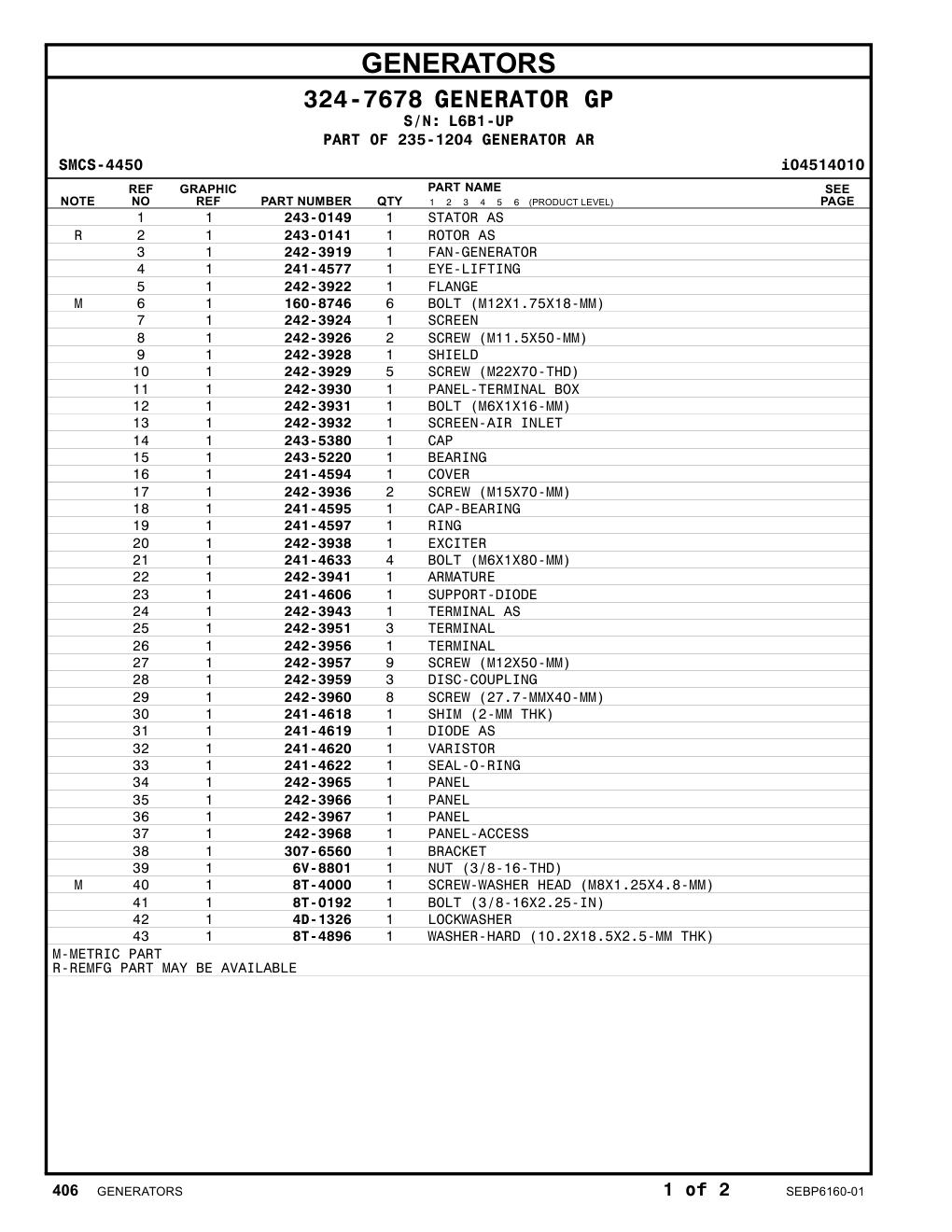

| Part No. | Name | Qty | Page |
|---|---|---|---|
| 242-3919 |
FAN-GENERATOR
|
1 | 426 |
| 241-4577 |
EYE-LIFTING
吊环 |
1 | 426 |
| 242-3922 |
FLANGE
半边 |
1 | 426 |
| 242-3924 |
SCREEN
滤网 |
1 | 426 |
| 242-3926 |
SCREW (M11.5X50-MM)
螺钉 |
2 | 426 |
| 242-3928 |
SHIELD
护罩 |
1 | 426 |
| 242-3929 |
SCREW (M22X70-THD)
螺钉 |
5 | 426 |
| 242-3930 |
PANEL-TERMINAL BOX
接线盒面板 |
1 | 426 |
| 242-3931 |
BOLT (M6X1X16-MM)
螺栓 |
1 | 426 |
| 242-3932 |
SCREEN-AIR INLET
进气滤网 |
1 | 426 |
| 243-5380 |
CAP
盖 |
1 | 426 |
| 243-5220 |
BEARING
前轴承 |
1 | 426 |
| 241-4594 |
COVER
先导盖 |
1 | 426 |
| 242-3936 |
SCREW (M15X70-MM)
螺钉 |
2 | 426 |
| 241-4595 |
CAP-BEARING
轴承盖 |
1 | 426 |
| 241-4597 |
RING
密封圈 |
1 | 426 |
| 242-3938 |
EXCITER
励磁机 |
1 | 426 |
| 241-4633 |
BOLT (M6X1X80-MM)
螺栓 |
4 | 426 |
| 242-3941 |
ARMATURE
电枢 |
1 | 426 |
| 241-4606 |
SUPPORT-DIODE
二极管支架 |
1 | 426 |
| 242-3943 |
TERMINAL AS
端子组件 |
1 | 426 |
| 242-3951 |
TERMINAL
端子 |
3 | 426 |
| 242-3956 |
TERMINAL
端子 |
1 | 426 |
| 242-3957 |
SCREW (M12X50-MM)
螺钉 |
9 | 426 |
| 242-3959 |
DISC-COUPLING
盘式联轴器 |
3 | 426 |
| 242-3960 |
SCREW (27.7-MMX40-MM)
螺钉 |
8 | 426 |
| 241-4618 |
SHIM (2-MM THK)
调整垫片 |
1 | 426 |
| 241-4619 |
DIODE AS
二极管组件 |
1 | 426 |
| 241-4620 |
VARISTOR
压敏电阻 |
1 | 426 |
| 241-4622 |
SEAL-O-RING
O 形密封圈 |
1 | 426 |
| 242-3965 |
PANEL
面板 |
1 | 426 |
| 242-3966 |
PANEL
面板 |
1 | 426 |
| 242-3967 |
PANEL
面板 |
1 | 426 |
| 242-3968 |
PANEL-ACCESS
检修面板 |
1 | 426 |
| 307-6560 |
BRACKET
支架 |
1 | 426 |
| 6V-8801 |
NUT (3/8-16-THD)
调速螺母 |
1 | 426 |
| 8T-0192 |
BOLT (3/8-16X2.25-IN)
螺栓 |
1 | 426 |
| 4D-1326 |
LOCKWASHER
锁紧垫圈 |
1 | 426 |
| 8T-4896 |
WASHER-HARD (10.2X18.5X2.5-MM THK)
硬垫圈 |
1 | 426 |
