9X-8124

SWITCH AS-MAGNETIC (24-VOLT) (STARTING MOTOR)

Group: 361-9107 · System: ELECTRICAL AND STARTING SYSTEM · Page: 185
Home › Parts Manual › CAT C15 › 9X-8124

Part Information

Part No.
9X-8124
Name (EN)
SWITCH AS-MAGNETIC (24-VOLT) (STARTING MOTOR)
Name (CN)
-
Qty
1 per assembly
Group
361-9107
System
ELECTRICAL AND STARTING SYSTEM
Source
CAT Official Parts Manual

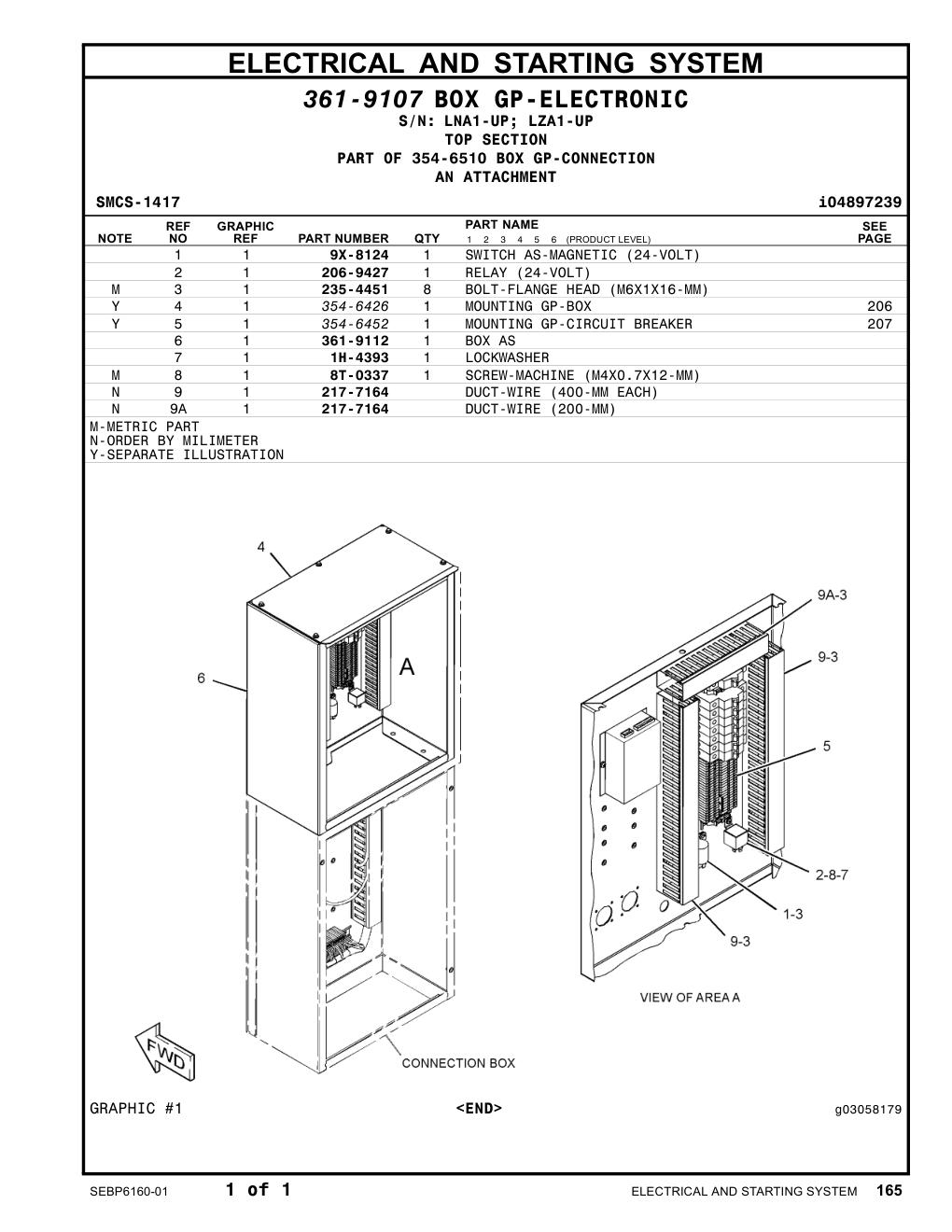

Installation Diagram

9X-8124 - SWITCH AS-MAGNETIC (24-VOLT) (STARTING MOTOR)
※ Click image to zoom · Page 185 of official CAT C15 parts manual
×

Same Group Parts (361-9107) - 5 related

Part No. Name Qty Page
206-9427
RELAY
24-伏
 1 185
354-6426
MOUNTING GP-BOX
 1 185
354-6452
MOUNTING GP-CIRCUIT BREAKER
 1 185
361-9112
BOX AS
箱组件
 1 185
1H-4393
LOCKWASHER
锁紧垫圈
 1 185
Need price and stock for 9X-8124? WSTPARTS supplies genuine CAT parts globally with fast delivery.
Request Quote →
