CAT C9 209-5582 Parts Manual Diagram - SWITCH GP-MAGNETIC (24-VOLT)

Home › Parts Manual › CAT C9 › 209-5582

Part No.

209-5582

Name (EN)

SWITCH GP-MAGNETIC (24-VOLT)

Name (CN)

Qty

1 per assembly

Group

223-4453

System

ELECTRICAL AND STARTING SYSTEM

Source

CAT Official Parts Manual

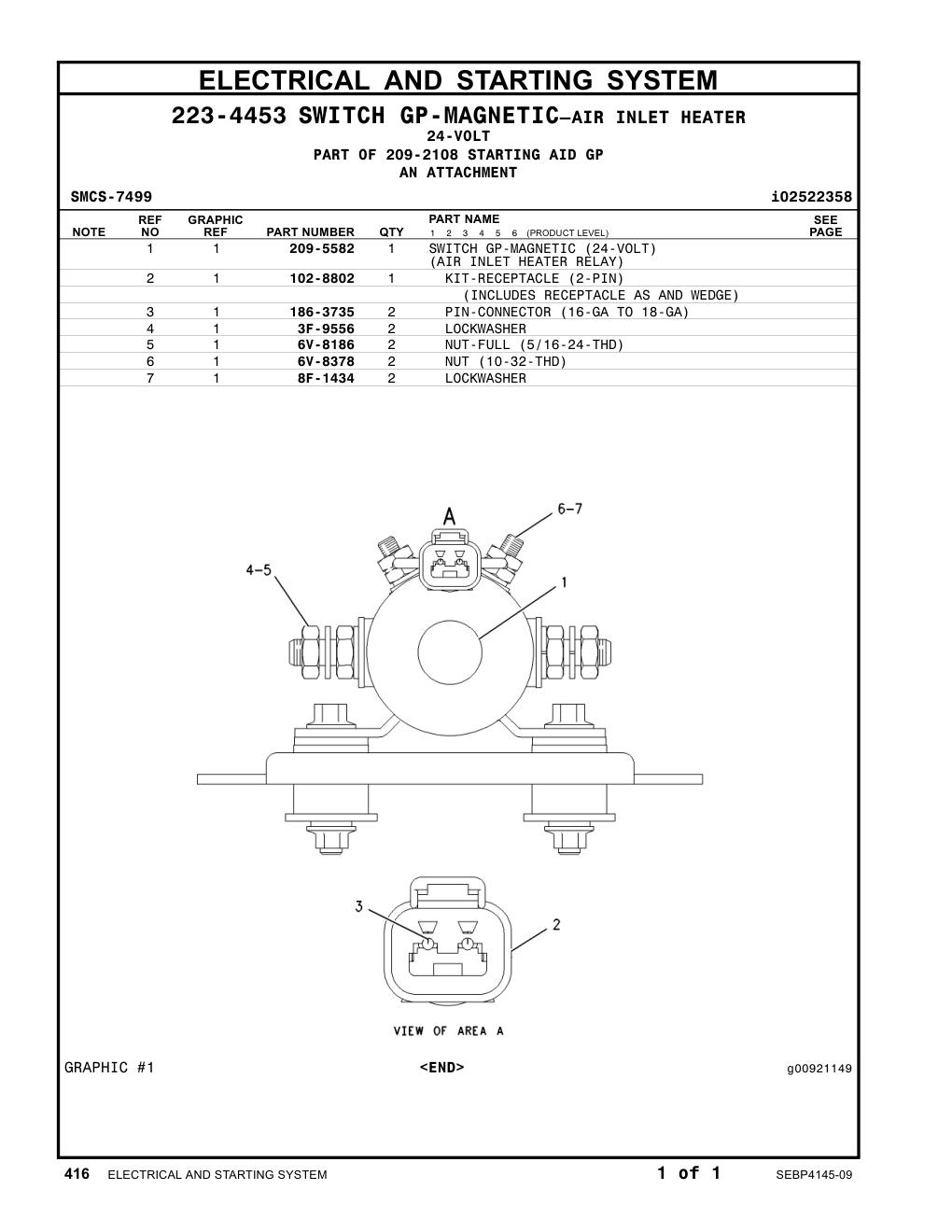

※ Click image to zoom · Page 505 of official CAT C9 parts manual

Part No.	Name	Qty	Page
102-8802	KIT-RECEPTACLE (2-PIN) 插座套件	1	505
186-3735	PIN-CONNECTOR (16-GA TO 18-GA) 连接销	2	505
3F-9556	LOCKWASHER 锁紧垫圈	2	505
6V-8186	NUT-FULL (5/16-24-THD) 全高螺母	2	505
6V-8378	NUT (10-32-THD) 调速螺母	2	505
8F-1434	LOCKWASHER 锁紧垫圈	2	505
