317-9506

24-伏

Group: 420-5290 · System: ELECTRICAL AND STARTING SYSTEM · Page: 180
Home › Parts Manual › CAT C9 › 317-9506

Part Information

Part No.
317-9506
Name (EN)
RELAY (GROUND FAULT, 24-VOLT, DC)
Name (CN)
24-伏
Qty
1 per assembly
Group
420-5290
System
ELECTRICAL AND STARTING SYSTEM
Source
CAT Official Parts Manual

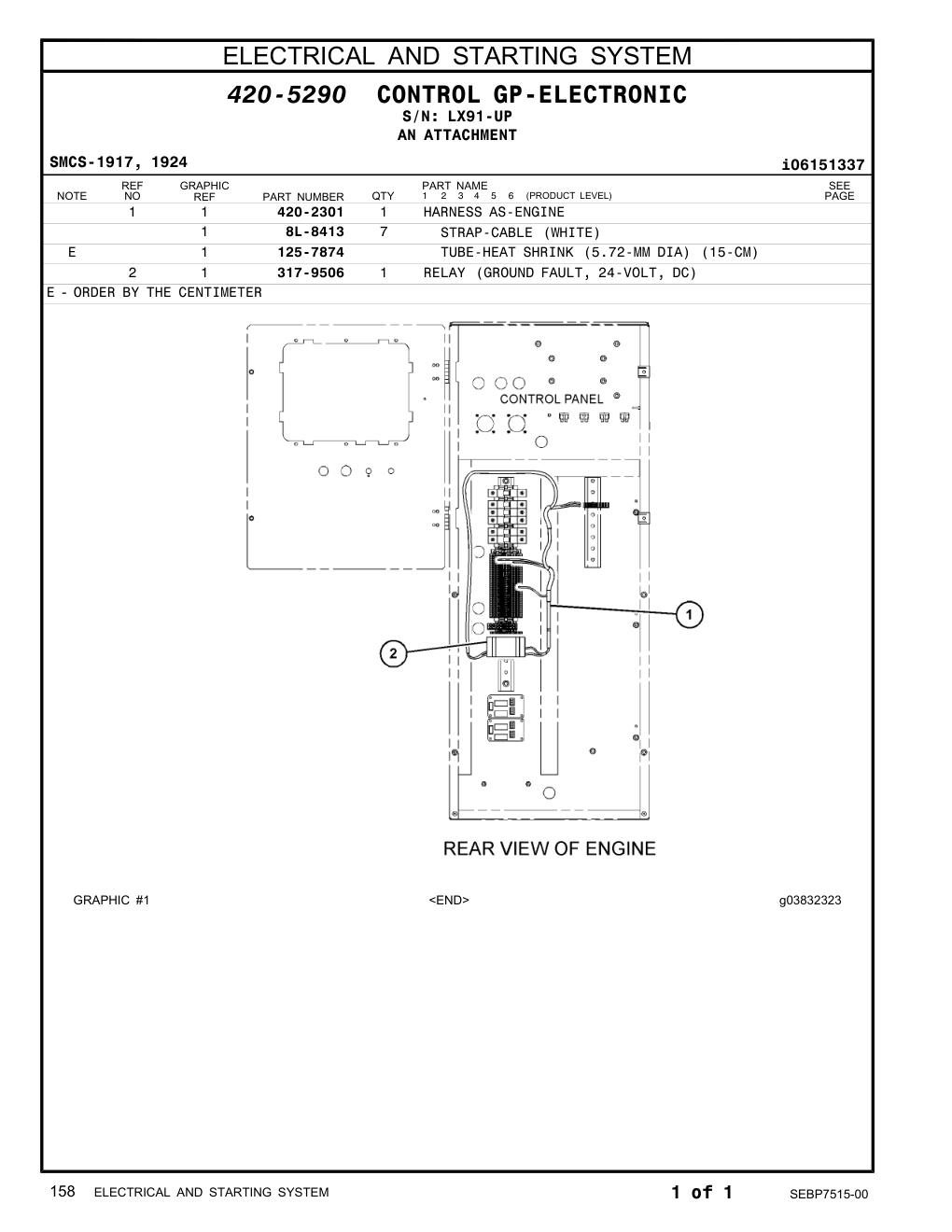

Installation Diagram

317-9506 - RELAY (GROUND FAULT, 24-VOLT, DC)
※ Click image to zoom · Page 180 of official CAT C9 parts manual
×

Same Group Parts (420-5290) - 2 related

Part No. Name Qty Page
420-2301
HARNESS AS-ENGINE
发动机线束组件
 1 180
8L-8413
STRAP-CABLE
电缆束带
 7 180
Need price and stock for 317-9506? WSTPARTS supplies genuine CAT parts globally with fast delivery.
Request Quote →
